Linx 8800 Series
Reliable continuous ink jet printer with up to 6-line coding capability.
Designed to reduce your total cost of ownership and increase your production line output, the Linx 8840 CIJ printers deliver consistent, error-free date and batch codes.
Key benefits
Flexible coder prints up to 6 lines of text, numbers, barcodes and logos (model dependent)
Simple self-service with up to 18 months between services – no engineer required, only 0.5 litres of ink changed
Solvent consumption as low as 3.5ml/hour*
Printhead cleaning interval up to three months to reduce downtime and fluids consumption
Linx PrinterNet enabled – remote monitoring and control of Linx 8800 Series printers via a secure, cloud-based service
Additional benefits

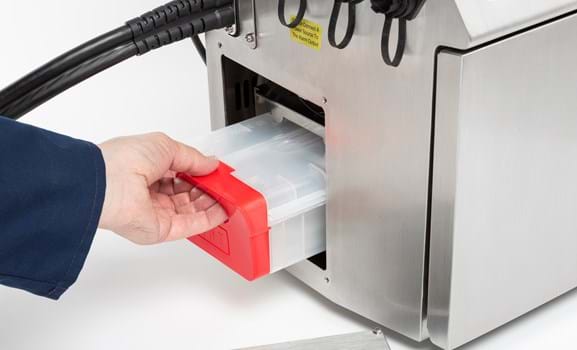

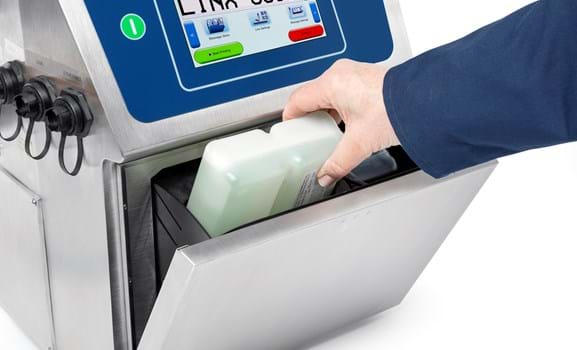

Quick-change mess-free, mistake-proof fluid cartridges
IP55-rated stainless steel enclosure as standard.
Range of ink types and colours for both consumer and industrial marking.
Error free message selection without language barriers using product images.
Printed character sizes from 1.8 to 20mm to meet your coding requirements.
Prompts to ensure correct date and text is added to message.
Simple to insert text or logos into messages.
Linx 8840 Video
Linx PrinterNet Video
Technical Specifications
Printing Capability
- Up to 6 lines of text, symbols, numbers, barcodes
- Data Matrix and QR codes
- Character height from 1.8mm to 20mm
- Maximum print speed 7.50 m/s (single line of code – 8840)
- Carton coding option with character height up to 20mm
- Rotated character (‘tower’) printing
Programming features
- Screen with icons, drag-and-drop field positioning, and zoom function for longer messages
- Custom date and time editor to create different date formats as required
- USB port for copy and back-up of message and printer settings, and for easy transfer of messages between printers, and downloading of output and line stoppage logs
- Message store of up to 1000
- Real-time output measurement on screen
- Output and line stoppage logs
- Screen saver shows real-time output on/off target indication
- Customisable top screen for most frequently used features
Physical Characteristics

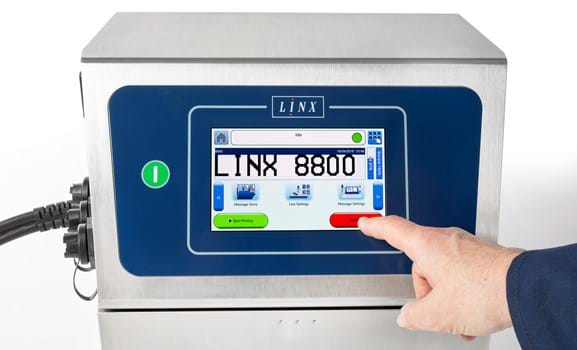

- 7 inch colour touch screen
- Stainless steel enclosure
- IP55 (washdown) as standard
- 2m conduit as standard with 4m option
- Weight 24kg
- No factory air required
- Ethernet port
