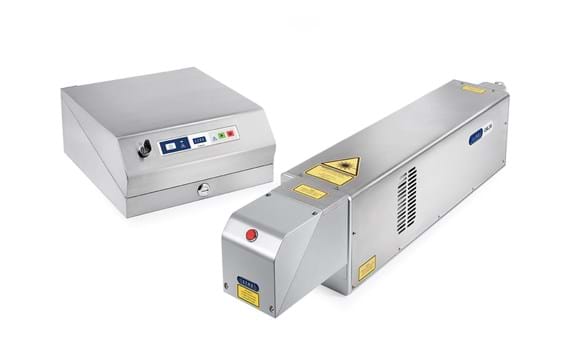

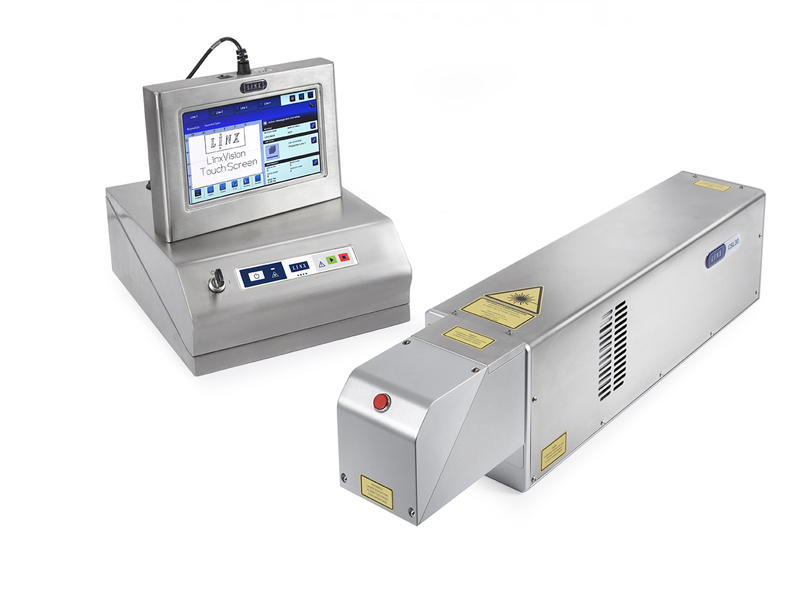

Linx CSL30
Largest marking area in its class
The Linx CSL30 laser coder produces sharp codes on fast lines, and even on hard to mark materials such as glass and rubber. It’s been designed to keep up with your coding requirements as they change – line speed, code complexity, or material types – with no additional investment needed. This advanced industrial laser printer, laser coding machine, and laser coding and marking machine utilizes innovative Laser technology to deliver high-quality permanent codes across a wide range of materials. As an industrial laser coding printer, it is ideal for manufacturers requiring reliable and efficient product identification.
Key benefits
Easy to use
Meet production targets
Print in more applications
Linx CSL30 coding onto card boxes
Linx PrinterNet Video
Technical Specifications
Coding and Marking Capability
- CO2 scribing laser coder
- Line speed – up to 900 m/min (code and substrate dependent)
- Maximum laser output power at lens – 30 W
- Lens and head options (range) : SHC150c
- Spot Size 0.091 mm – 1.65 mm
- Marking Field 29 mm x 36 mm to 440 mm x 601 mm (wide web application)
- Mark distance 67 mm – 576 mm
- Number of lines of text – only limited by character size and marking field size
- Character height – up to marking field size
- Print rotation – 0-360°
- Marking head rotation – 0-360°
- Code options : date, time, static text, variable text, serial numbers,alphanumeric, shift codes, increment/decrement (batch count), ID Matrix 2D codes, barcodes, QR codes, graphics and logos, Julian dates, custom date and time formats
- Laser tube wavelengths – 10.6 µm, 9.3 µm, or 10.2 µm
- Marking head options – 4 marking heads available as standard
- Versatile Beam delivery options for easy integration into your production line : Down (90°) or Straight (0°) Shooter
- 360° Beam Extension Unit (BEU)
- Variable length Beam Turning Unit (BTU)
- IP rating – IP54 as standard, IP65 option
- Air cooled – not factory air
- Large volume gas tube can last in excess of 45,000* hours
- Laser tube warranty – 2 years
*Tube life may vary according to application.
As one of the preferred solutions recommended by laser coding machine suppliers and laser marking machine dealers, the Linx CSL30 is ideal for businesses looking for a dependable laser coding machine Bangalore solution. Its flexible configuration options and large marking area make it suitable for a wide range of coding and marking requirements.
