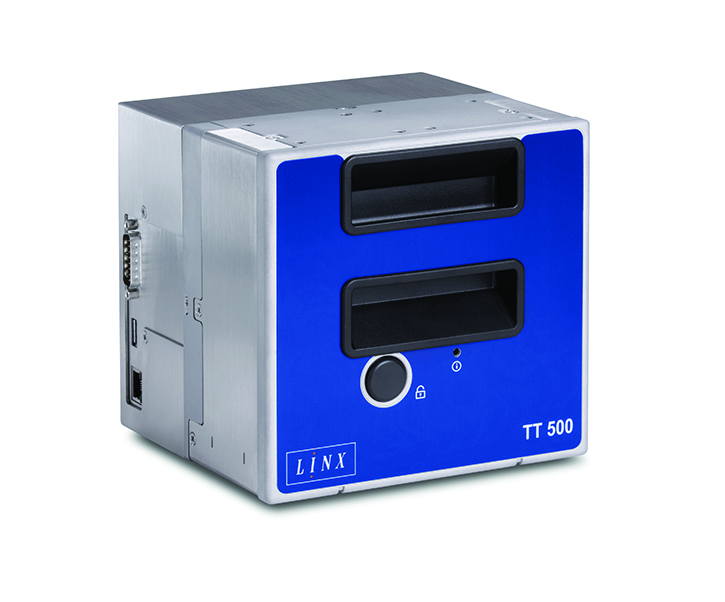

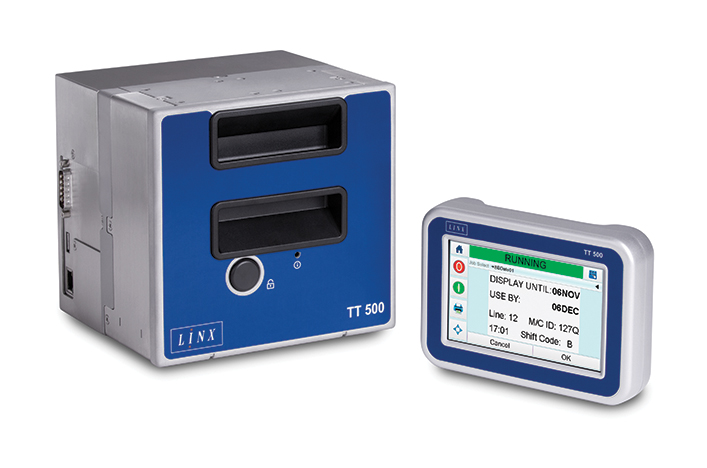

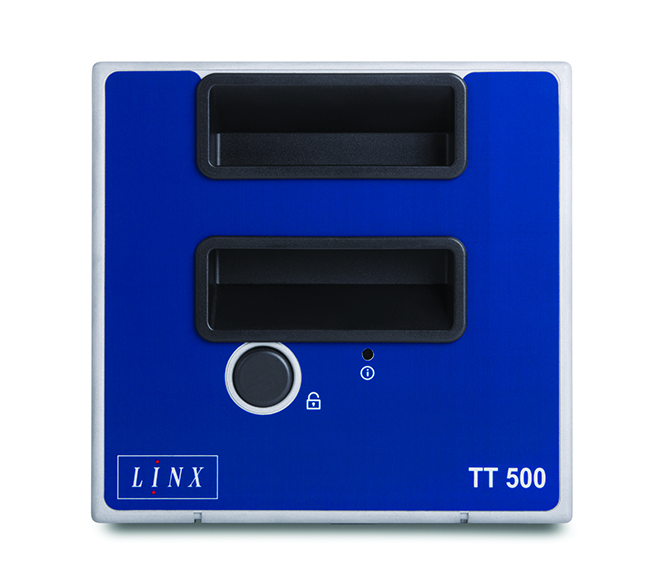

Linx TT 500 TTO printer
The Linx TT Series of Thermal transfer Overprinter solutions provides an ideal printing solution onto flexible packaging across a wide variety of industrial applications.
Designed to deliver a low total cost of ownership and increase your production line output, the Linx TT Series TTO printer is particularly suitable for printing consistent, error free best before dates, batch codes, barcodes, ingredients, logos and other product information using advanced thermal transfer printer technology.
With an advanced motor drive, enabling operation without compressed air, the Linx TT Series TTO coding machine prints up to 1000 mm/s at widths up to 107mm.
Key benefits of TTO printer
Low total cost of ownership
Increased uptime
Ease of Use
Linx TT 500 Video
Linx PrinterNet Video
Technical Specifications
Performance
- Intermittent and continuous mode in the same printer
- Printhead characteristics : 32mm, 200dpi, 8 dots/mm
- Print area – intermittent motion mode : Up to 32mm (W) x 47mm (L)
- Print area – continuous motion mode : Up to 32mm (W) x 100mm (L)
- Maximum throughput* : 150 prints per minute
- Ribbon width : 20mm – 33mm
- Maximum ribbon length : 700m
- Print speed* – intermittent motion mode : 50mm/sec – 300mm/sec
- Print speed* – continuous motion mode : 40mm/sec – 500mm/sec
- Cable length between printer and power supply unit : 3 metres (5m option)
Ideal for high-speed barcode printing machine and thermal barcode printer applications.
General Features

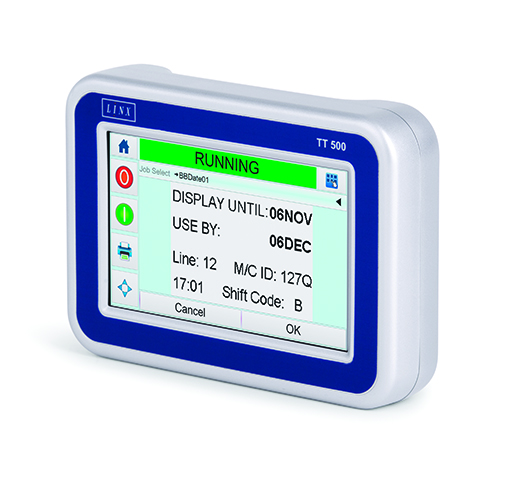

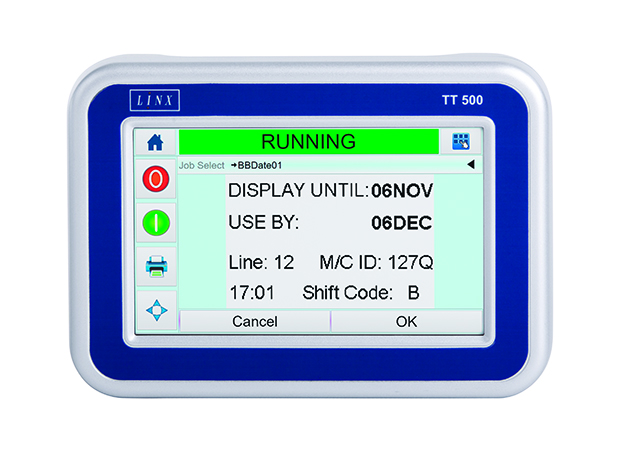

- 5.0” WVGA (800×480) LCD touch screen graphic user interface including WYSIWYG print preview
- Clutchless bi-directional ribbon drive including ribbon consumption indicator and ribbon break/end of reel detection
- Lightweight, simple, push button cassette design
- On-board diagnostics including printhead health
- 3 levels of password protection
- Multiple operator languages
Suitable for advanced TTO printer for pharma packaging operations.
Programming Features
- Linx CLARiSOFT® message design software
- Full downloadable font support for Windows® TrueType® (including multiple languages and Unicode support)
- Barcodes EAN-8, EAN-13, UPC-A, UPC-E and QR
- Fixed/variable text and numeric fields
- User enterable text and numeric fields
- Auto incrementing/decrementing text, counters and barcodes
- Basic shape drawing
- Flexible date/time formats
- Auto best before date calculation using an intelligent thermal transfer date coder
- Formats for shift coding
- Multiple graphic formats supported any size up to maximum print area
- Link fields to databases
- Field orientation 0°, 90°, 180°, 270°
- Mirror image, image rotation, and inverse printing
- Real time clock functions
- User configurable drop down lists fields
- Radial ribbon save functionality
Mounting Option
- Universal bracket system for integrating printer into intermittent and continuous motion packaging machinery
Connections/Interfacing
- External inputs (fully software configurable): 2 PNP inputs
- External outputs (fully software configurable): 2 relay outputs and 2 PNP +24v outputs RS232
- Ethernet
- USB memory stick support
- Binary and ASCII communications
- Host PC Mode (remote database) using CLARiNET® (option)
- Claricom CLARiNET® coder independent network management software (option)
- Link up to four TT 500 printers to a single user interface
Physical Characteristics
- Air supply: No compressed air required
- Humidity range: 85% max
- Power supply: 100 – 240VAC, 50/60Hz, 2A
- Operating temperature: 0° – 40°C
Ribbon Range Options
- Wax / Resin or Resin ink
- Range of colours, lengths and widths
As a trusted TTO printer manufacturer and TTO printer dealer, Printjet Solutions delivers advanced TTO printer India solutions for multiple industries. The Linx TT printer range is widely used in packaging, pharmaceutical, FMCG, and food industries requiring reliable thermal transfer overprinter India solutions and complete coding and marking solutions.
