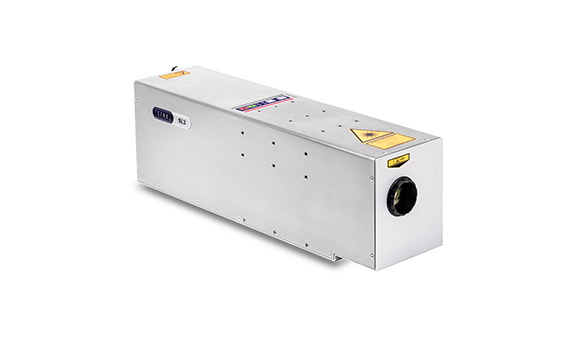

Linx SL3 Laser Coder
30W compact and robust laser coder
The Linx SL3 Laser Coder is affordable, enabled by a single laser coding unit with flexible configurations to meet your needs. Simple to install and easy to maintain, the Linx SL3 provides an ideal marking solution onto a wide range of products. With its IP54 rated enclosure and proven Laser technology, the Linx SL3 operates reliably in manufacturing environments, maximizing production output. This advanced CO2 laser coding machine, industrial laser printer, laser coding machine, and industrial laser coding printer delivers high-quality permanent coding and marking for a wide range of industrial applications.
Key benefits
Affordable
Robust
Simple
Linx SL3 Laser Coder
Linx SL3 Laser Coder
Technical Specifications
Printing Capabilities
- CO2 scribing laser coder
- Line speed – up to 360 m/min (code and substrate dependent)
- Maximum laser output power at lens – 30W
- Maximum marking speed [2mm characters/s]: 1300 m/min *
- Marking ellipse [mm]: 51 x 80; 76 x 120; 102 x 160
- Marking distance [mm]: 92; 141; 190
- Number of lines of text – only limited by character size and marking field size
- Character height – up to marking field size
- Print rotation – 0-360°
- Head mounting options: down (90°) or straight (0°)
- Pilot Laser: available as standard
- Focus Finder: available as standard
- Mounting: On 3 sides of laser
- Code options: Date, time, static text, variable text, serial numbers, shift codes, increment/decrement (batch count), 1D/2D barcodes, graphics and logos, Julian date, Custom date and time formats, 2D codes including DotCode
- Laser tube wavelengths – 10.6 µm or 9.3 µm
- IP rating – IP54 as standard
- Air cooled – not factory air
- Laser tube warranty – 2 years
As one of the solutions trusted by laser coding machine suppliers and laser marking machine dealers, the Linx SL3 is suitable for manufacturers seeking a dependable laser coding machine Bangalore solution for packaging, food, beverage, pharmaceutical, and industrial production environment
