Linx CSL60
Complex coding applications on high speed lines

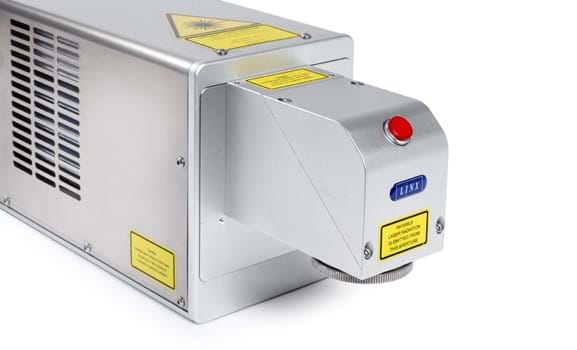

The Linx CSL60 Laser System marks complex codes at a high resolution onto high-speed lines. The 60 W laser power combined with a powerful processor allows coding onto hard to mark materials such as glass and rubber. Full system IP65 rating makes it a reliable coding solution for harsh production environments such as beverage, automotive or extrusion. This advanced industrial laser printer, laser coding machine, and laser coding and marking machine utilizes cutting-edge Laser technology to deliver permanent, high-quality codes on demanding production lines. It serves as an efficient industrial laser coding printer and laser printer for packaging industry applications requiring durability and traceability.
Key benefits
Easy to use
Meet production targets
Print in more applications
Linx CSL60 Video
Linx PrinterNet Video
Technical Specifications
Printing Capability
- 60 W CO2 scribing laser coder
- Line speed – code up to 2100 characters/second ; 70,000 bottles/hour ; 900m/min
- Maximum code height – 601mm
- Marking field size – up to 440 mm x 601 mm
- Laser wavelength – 9.3 μm or 10.2 μm or 10.6 μm
- Laser tube warranty – 2 years
- Spot size – from 0.091 mm to 1.65 mm
- Print rotation – up to 360°
- Marking head rotation – up to 360°
- Code options – Date, time, static text, variable text, serial numbers, shift codes, increment/decrement (batch count), 1D/2D barcodes, graphics and logos, Julian date, Custom date and time formats, 2D codes including DotCode.
- IP rating – full system IP65 rated as option ; IP54 as standard.
- Air cooled for both IP54 and IP65 variants.
As one of the solutions preferred by laser coding machine suppliers and laser marking machine dealers, the Linx CSL60 is ideal for manufacturers seeking a high-performance laser coding machine Bangalore solution for beverage, automotive, extrusion, and packaging industries.
