PJU5T UV industrial laser printer
Eco-Friendly & No Consumables

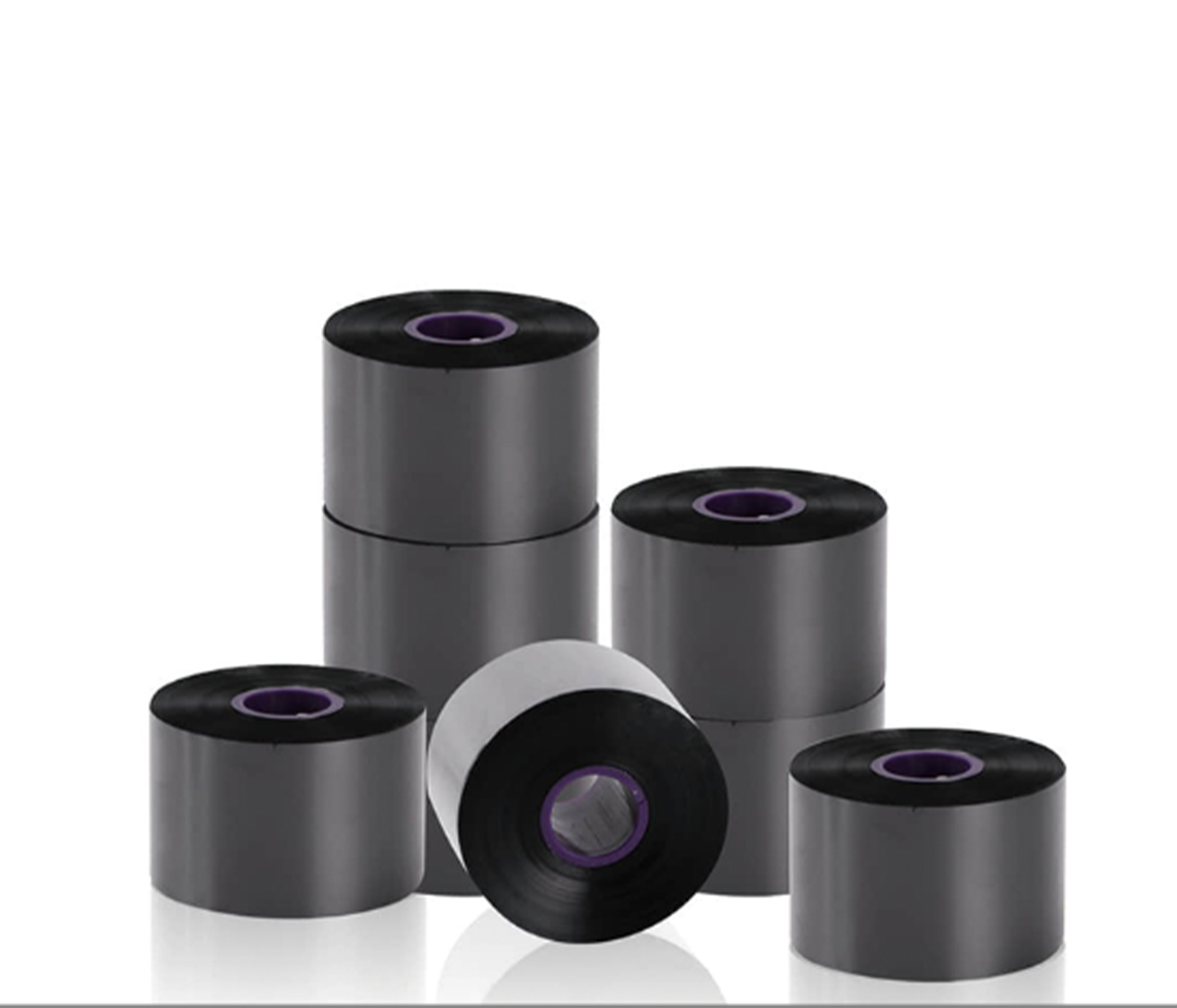

PJU5T Series eliminates consumables – no need for inks, ribbons or regular parts for replacement, helping save production costs and increase production efficiency. Used ink ribbons are hazardous waste. They need to be processed through special methods, which increases production costs. This advanced industrial laser printer utilizes innovative Laser technology to deliver efficient coding and marking without consumables. UV lasers do not produce any hazardous waste and are environmentally friendly and energy-saving, making them an ideal laser coding machine for modern manufacturing facilities.
Clear & Permanent Marks

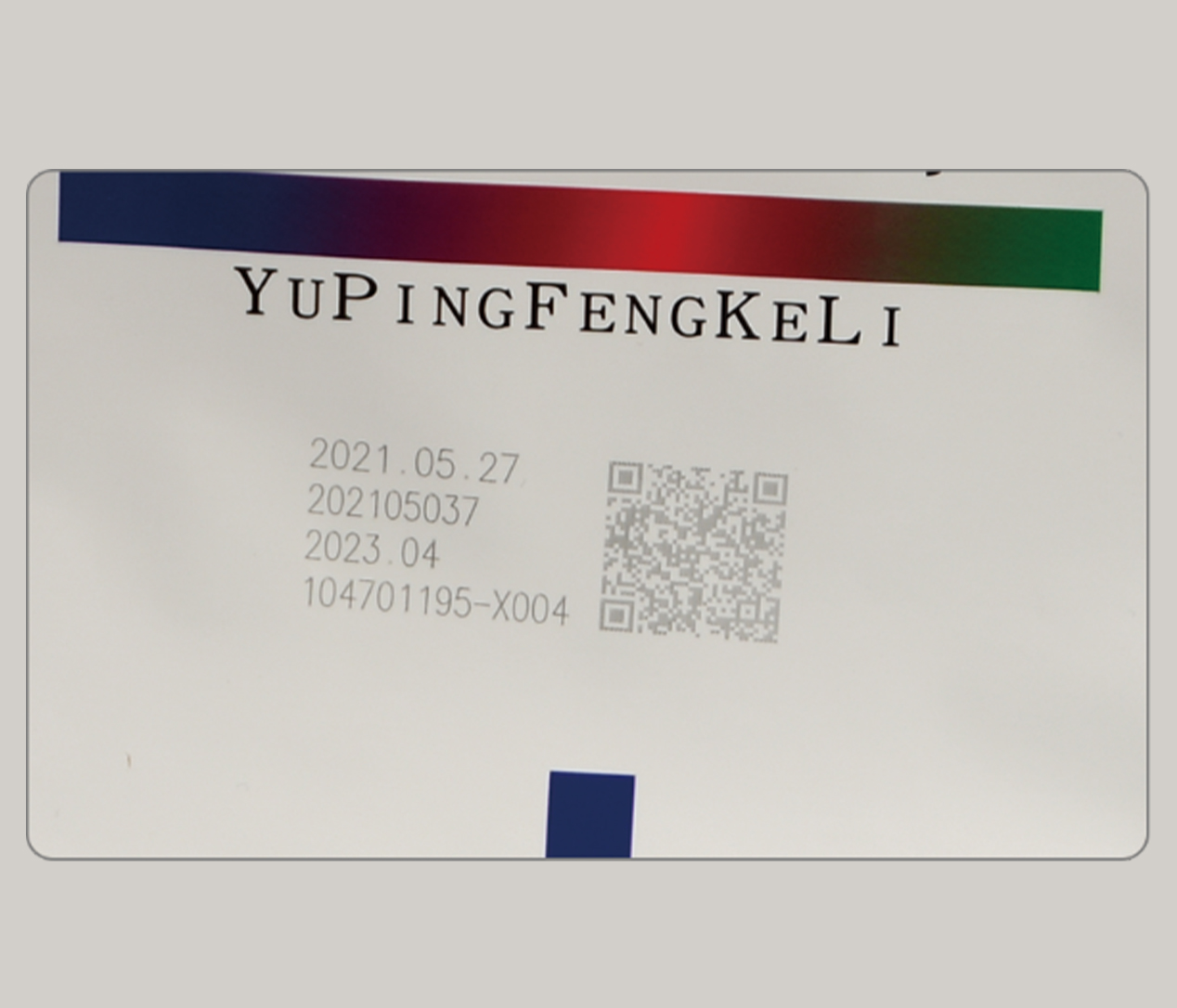

UV lasers don’t cause any substantial damage to packaging materials. It can deliver clear, gorgeous and permanent marks on the object’s surface. This industrial laser coding printer provides reliable laser marking capabilities and eliminates the possibility of TTO coding falling off from the packaging materials. As a high-performance laser date coding machine and batch coding laser printer, it ensures long-lasting and permanent product identification. The system also functions as a laser barcode marking machine for accurate barcode and QR code applications.
Compact Design & Easy To Use

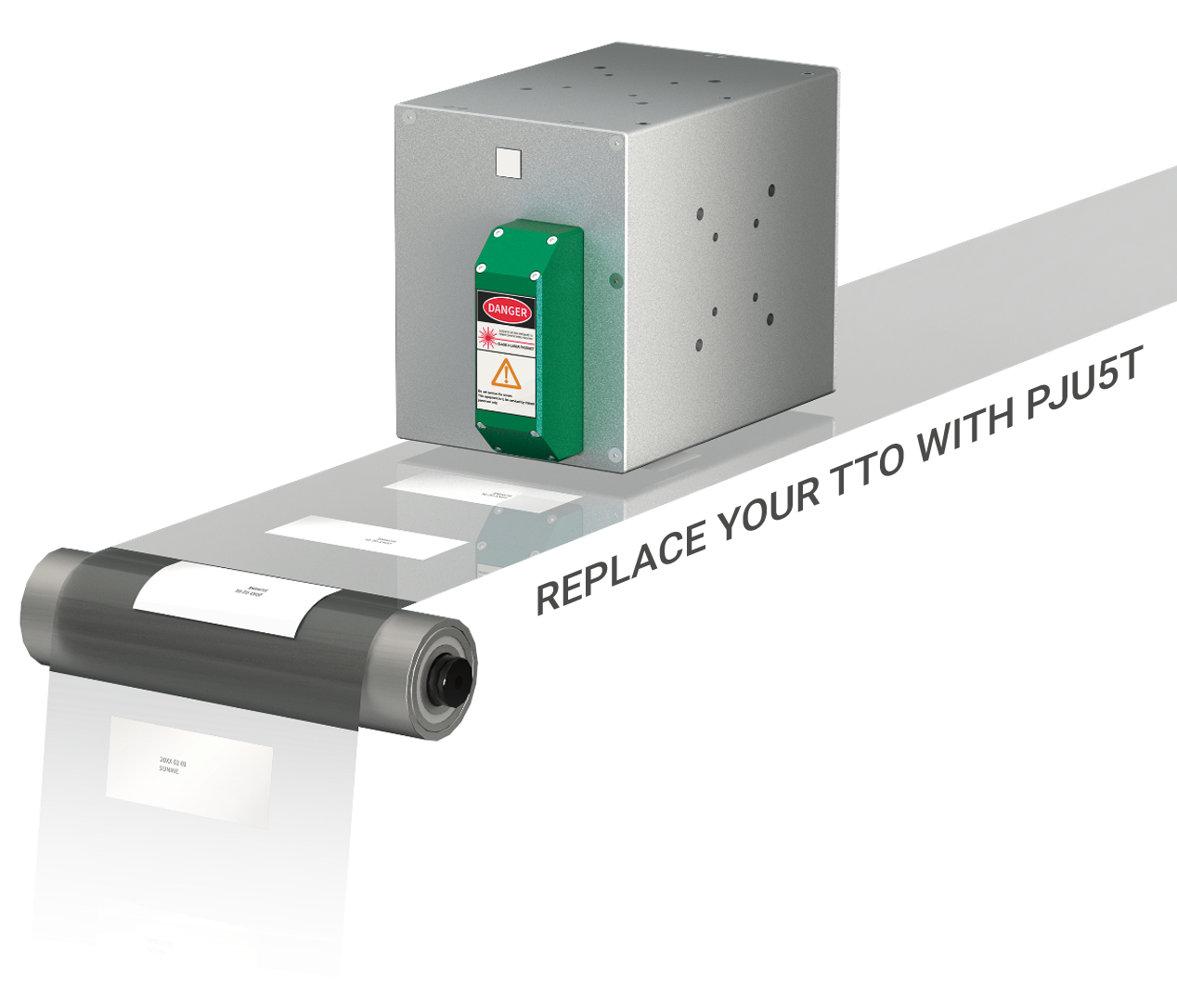

The volume is similar to the size of the TTO machine on the market. The working distance is 75mm ± 5mm. The working range is up to 100x100mm. So it can replace TTO to use easily. Equipped with self-developed P9 software system, it is simple and easy to use. This laser coding and marking machine features a compact footprint and operates as an automatic laser marking machine suitable for various production environments. It is an ideal laser printer for packaging industry applications where space and efficiency are important considerations.
Technical Specifications
Model# : PJU5T
Laser Power : 5W
Laser Type : UV Laser Source
Laser Wavelength : 355nm
Scanning Method : High-precision 2-dimensional scanning method
Marking Speed : ≤12000mm/s
Main Control : Highly integrated motherboard with 10″ touch screen controller
Operating System : Linux
Cooling System : Water-cooled
Type of Drawings : Both dot matrix and vector
Reflector size : 8.5mm
Mark Field : 100mm x 100mm
Positioning Method : Blue-light positioning
Working Distance : 75mm ± 5mm
Lines of Characters : No limits within mark field
Production Line Speed : 0~189m/min (varies according to materials and printing contents)
Language : English, Chinese, Korean, Russian, German, Arabic, etc.
Image Format : PLT
Code Type : CODE39, CODE128, CODE126, QR, Z-Code, DM, Visual code, etc.
Power Supply : 220V / 50-60Hz (110V optional)
Power Consumption : ≤750W
Machine Weight : 28kg (laser head + controller + chiller)

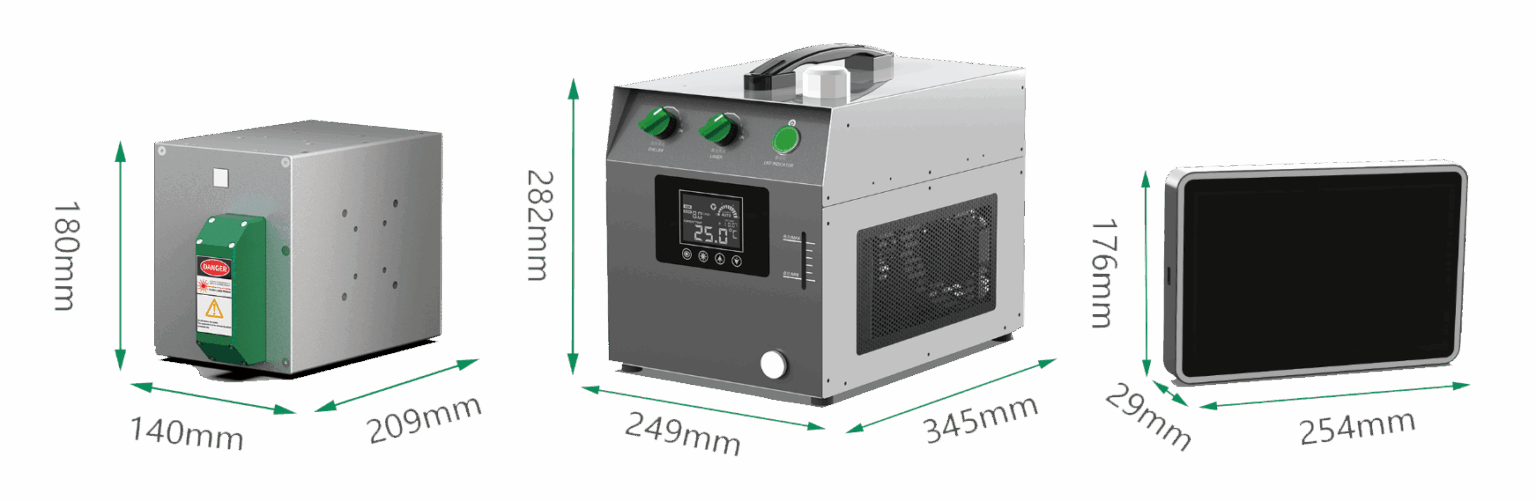

Laser Head Size : 209mm x 140mm x 180mm
Water Chiller Size : 249mm x 345mm x 282mm
Working Conditions : 5-40°C
