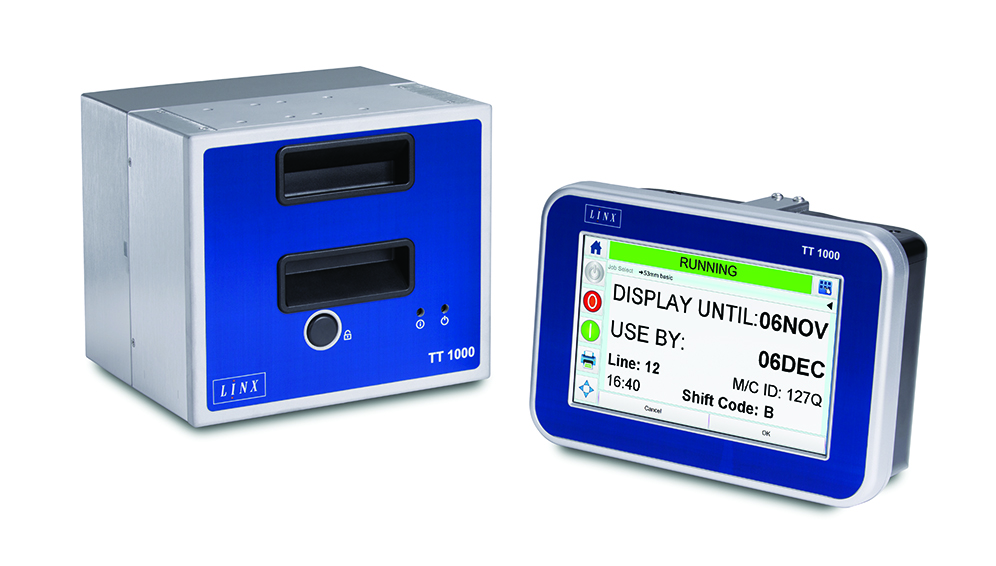

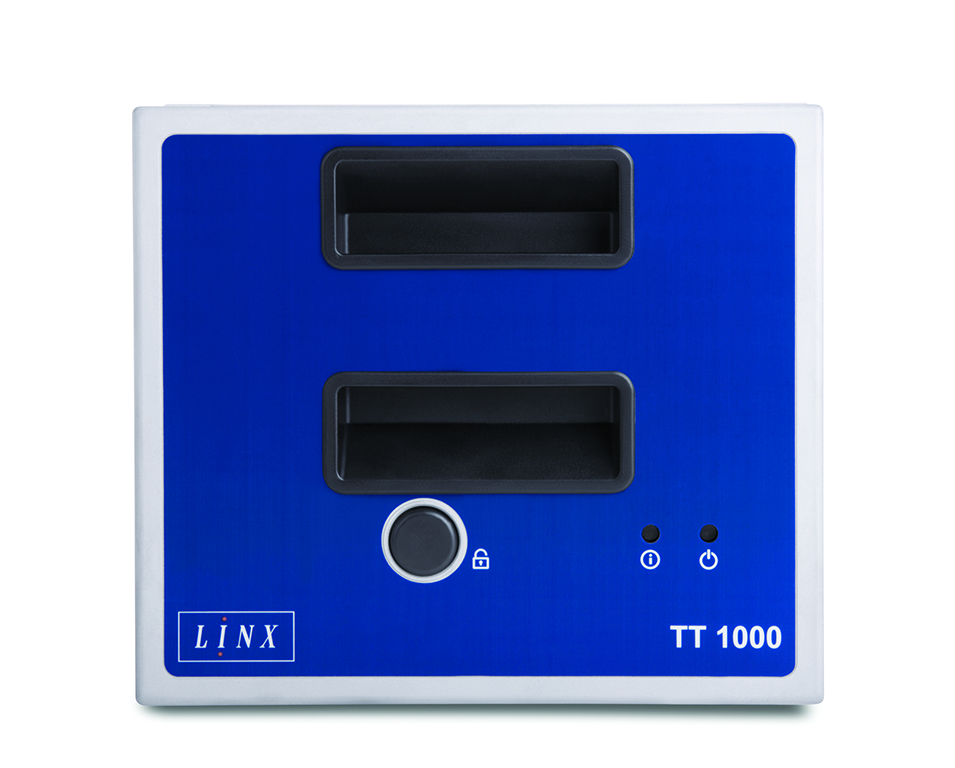

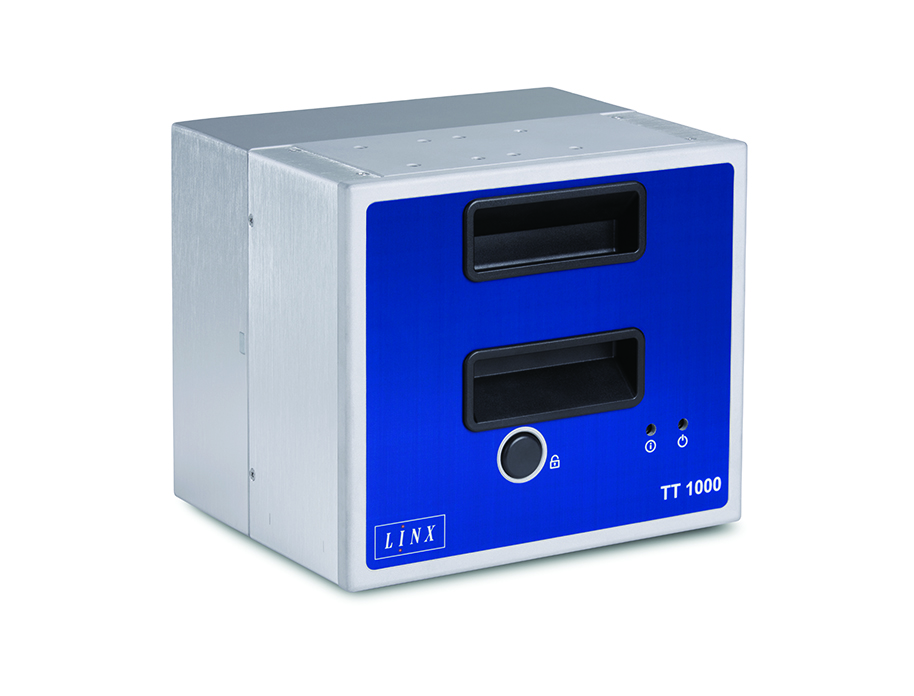

Linx TT 1000 TTO Printer
The Linx TT printer series of thermal transfer overprinters provides an ideal printing solution onto flexible packaging across a wide variety of industrial applications. This thermal transfer overprinter machine is a reliable flexible packaging printer designed for modern production environments.
Designed to deliver a low total cost of ownership and increase your production line output, the Linx TT Series printers are particularly suitable for printing consistent, error-free best before dates, batch codes, barcodes, ingredients, logos and other product information. It serves as an efficient TTO printer, thermal transfer printer, TTO coding machine, thermal transfer coding machine, TTO coding printer, industrial TTO printer, date coding machine, barcode printing machine, packaging coding machine, batch coding machine, expiry date printing machine, food packaging coding printer, and industrial coding printer.
With an advanced motor drive, enabling operation without compressed air, the Linx TT Series printers print up to 1000 mm/s at widths up to 107mm. This high-speed online TTO printer is ideal for continuous production lines and supports a wide range of coding and marking solutions.
Key benefits Of TTO Printer
Low total cost of ownership
Increased uptime
Ease of Use
Linx TT 750 Video
Introduction on TTO Series
Technical Specifications of TTO Printer
Performance
- Intermittent and continuous mode in the same printer
- Printhead characteristics: 53mm, 300dpi, 12 dots/mm; 107mm, 300dpi, 12 dots/mm
- Print area – intermittent motion mode:Up to 53mm (W) x 75mm (L) (53mm) Up to 107mm (W) x 75mm (L) (107mm)
- Print area – continuous motion mode: Up to 53mm (W) x 300mm (L) (53mm) Up to 107mm (W) x 300mm (L) (107mm)
- Maximum throughput*: Up to 700 prints per minute (53mm) Up to 450 prints per minute (107mm)
- Ribbon width: 20mm – 55mm (53mm) 55mm – 110mm (107mm)
- Maximum ribbon length: 1200m
- Ribbon gap between messages: 0.5mm nominal
- Print speed* – intermittent motion mode: 10mm/sec – 800mm/sec (53mm) 10mm/sec – 600mm/sec (107mm)
- Print speed* – continuous motion mode: 1mm/sec – 1000mm/sec (53mm) 1mm/sec – 1000mm/sec (107mm)Cable length between printer and power supply unit: 3 metres (5m option
- The TT 1000 is suitable as a continuous packaging printer, pouch printing machine, pouch batch coding machine, thermal transfer date coder, and thermal barcode printer for high-speed packaging applications.
General Features

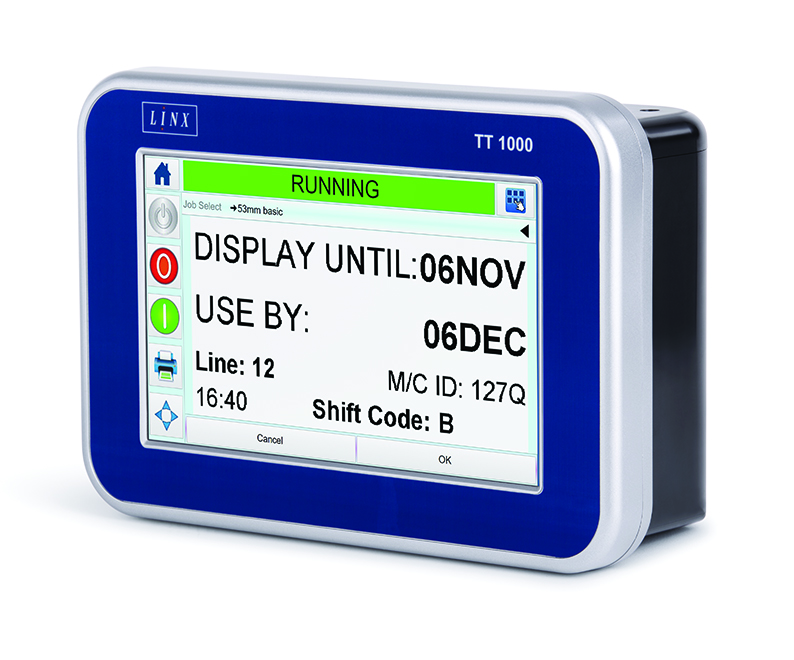

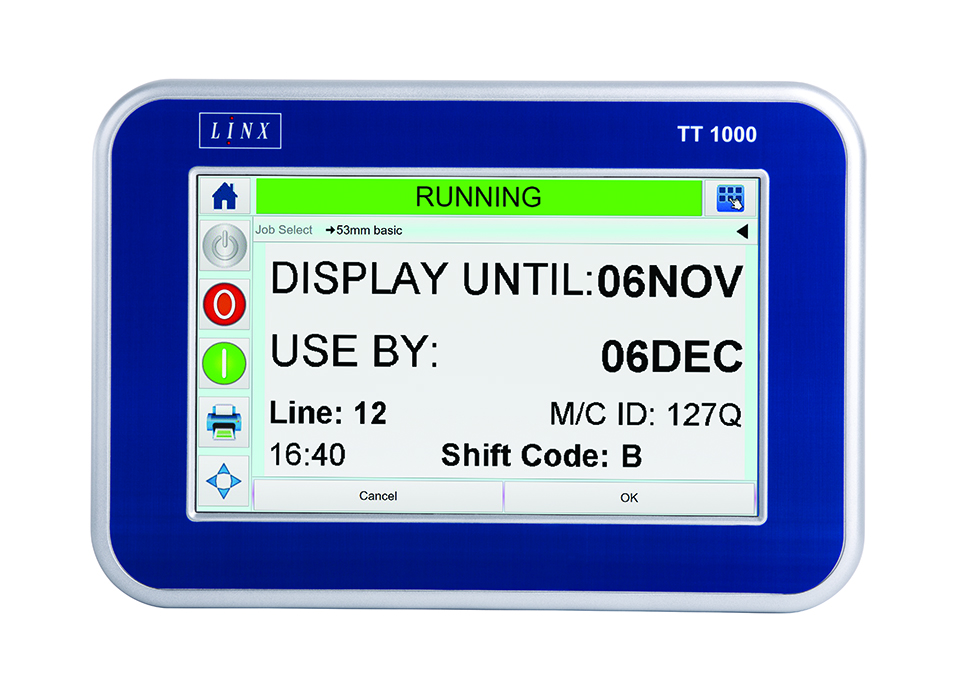

- 8.0” WVGA (800×480) LCD touch screen graphic user interface including WYSIWYG print preview
- Clutchless bi-directional ribbon drive including ribbon consumption indicator and ribbon break/end of reel detection
- Lightweight, simple, push button cassette design
- On-board diagnostics including printhead health
- 3 levels of password protection
- Multiple operator languages
Programming Features
- Linx CLARiSOFT® message design software
- Full downloadable font support for Windows® TrueType® (including multiple languages and Unicode support)
- Barcodes EAN-8, EAN-13, UPC-A, UPC-E, Code 39, EAN128, Code 128, ITF, PDF417, Data Matrix, QR, RSS (including 2D composite codes
- Fixed/variable text and numeric fields
- User enterable text and numeric fields
- Auto incrementing/decrementing text, counters and barcodes
- Basic shape drawing
- Flexible date/time formats
- Auto best before date calculation
- Formats for shift coding
- Multiple graphic formats supported any size up to maximum print area
- Link fields to databases
- Field orientation 0°, 90°, 180°, 270°
- Mirror image, image rotation, and inverse printing
- Real time clock functions
- User configurable drop down lists fields
- Radial ribbon save functionality
- This advanced TTO printer for pharma packaging is also suitable for food, beverage, cosmetics, and industrial packaging applications.
Mounting Option
- Universal bracket system for integrating printer into intermittent and continuous motion packaging machinery
Connections/Interfacing
- External inputs (fully software configurable): 3 PNP inputs
- External outputs (fully software configurable): 2 relay outputs and 2 PNP +24v outputs RS232
- Ethernet
- USB memory stick support
- Binary and ASCII communications
- Host PC Mode (remote database) using CLARiNET® (option)
- Claricom CLARiNET® coder independent network management software (option)
- Link up to four TT 1000 printers to a single user interface
Physical Characteristics
- Air supply: No compressed air required
- Humidity range: 85% max
- Power supply: 100 – 240VAC, 50/60Hz, 2A
- Operating temperature: 0° – 40°C
Ribbon Range Options
- Wax / Resin or Resin ink
- Range of colours, lengths and widths
