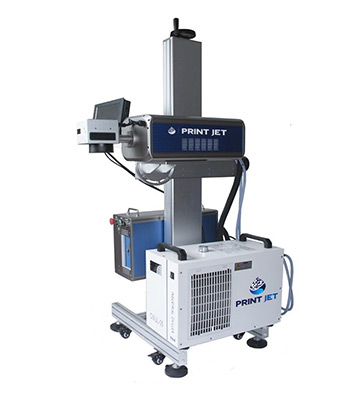

PJS-LFUV 3/5/10/15/25W Laser coding machine
High Performance, lowest Maintenance
PJS-LFUV3 Series is a state of art high performance, Lowest Maintenance on-Fly UV Laser Coder. This advanced industrial laser printer adopts world class Laser technology in order to provide uninterrupted consistent output without any consumable & lowest cost of maintenance. PJS-LFUV3 Series adopts the most advanced polarized lens to ensure superior quality and high speed output. The entire system integrates Industrial Grade color touch screen controller, Optional European or Asian Laser Source and high performance SCANLAB Galvo from USA or optional Asian Galvo which provide quality high speed output in harsh environments. As an industrial laser coding printer, it is designed for demanding industrial applications requiring precision and reliability. Businesses evaluating UV laser systems alongside a Fibre laser coding machine can benefit from the PJS-LFUV3 Series for high-speed, permanent, and maintenance-friendly coding applications.
Easy To use for quick code setup and operation
Features & Advantages
Cost efficient yet reliable
Lowest cost of ownership as compared to any other coding and marking machine available in the market. The most robust and reliable “India Tuned” on-Fly laser marking system till date, which will not only save on your costs of Coding but eventually will pay you back. It functions effectively as a laser date coding machine, batch coding laser printer, and laser barcode marking machine, delivering permanent and high-quality codes on various substrates. The system is also an ideal laser printer for packaging industry applications requiring durability and traceability.
Technical Specifications
Line Speed : 0 – 900 meters/min or 2100 Characters per second (Depends on material & Code)
Focus distance : 280mm
Marking Line type : DOT Matrix, BOLD, Vector all in one
Fonts : all that are available on computer
Minimum Line width : 0.012mm
Marking area : Standard 110mm X 110mm (Customizable up to 400mm x 600mm)
Marking length : Unlimited
Source Life : 20,000 Hours.
Positioning mode : RED Light Focused
Dot Size : From 0.091 mm to 1.65 mm
Number of lines : Multiline within marking area
Languages supported : English, Hindi, Arabic, Chinese,Spanish Etc
File formats : BMP, JPEG,DXF, PLT
Accessories available : Sensors, Encoder, Vision systems etc
Power Supply : 100 – 240V 50/60Hz 6W
Environment Requirement : Temperature – 5 -45 Degree Celsius Humidity – 10-90 % (noncondensing)
Interface : Touch Screen HMI, USB, Encoder, Sensor
Size : 120cms x 32cms x 19cms
Weight : 62.5 Kgs ( Including Accessories & X-Y Axis with castors)
Functions
- Field rotation as per requirement
- Print delay inbuilt can be adjusted as required
- Inbuilt Date, Time Bar Code, 2D Code, QR Code, Serial Number
- Production data can be set online
- Meter marking function inbuilt
- Different Wattage Source available for varied applications
As one of the trusted laser coding machine suppliers and laser marking machine dealers, PrintJet Solutions delivers advanced coding and marking systems across industries. Organizations searching for a laser coding machine Bangalore solution or looking for Laser marking can rely on the PJS-LFUV Series for high-speed, permanent, and cost-effective marking performance.
