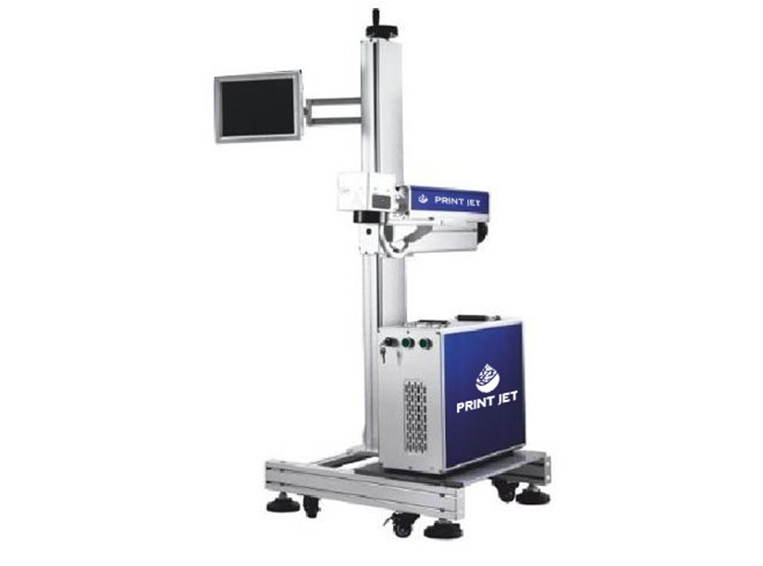

PJS-LF-9900 Fiber laser coding machine
PJS-LF-9900 Series is a state of art high performance, Lowest Maintenance on-Fly Fiber Laser Coder. It adopts world class Laser technology in order to provide uninterrupted consistent output without any consumable & lowest cost of maintenance. PJS-LF-9900 Series adopts the most advanced polarized lens to ensure superior quality and high speed output. The entire system integrates Industrial Grade color touch screen controller, Optional European or Asian Laser Source and high performance SCANLAB Galvo from USA or optional Asian Galvo which provide quality high speed output in harsh environments. This advanced industrial laser printer, laser coding machine, and Fibre laser coding machine is designed to deliver reliable, high-speed coding and marking performance across demanding industrial production lines.
Easy To use for quick code setup and operation
Features & Advantages
Cost efficient yet reliable
Lowest cost of ownership as compared to any other coding and marking machine available in the market. The most robust and reliable “India Tuned” on-Fly laser marker till date, which will not only save on your costs of coding but eventually will pay you back. This versatile laser coding and marking machine is suitable for use as a laser date coding machine, batch coding laser printer, and laser barcode marking machine, delivering permanent, high-quality marks on a wide range of materials. It is also an ideal laser printer for packaging industry applications requiring traceability and product identification. The system provides precise laser marking with excellent durability and readability.
Technical Specifications
Line Speed : 0 – 900 metres/min or 2100 Characters per second (Depends on material & Code)
Focus distance : 280mm
Marking Line type : DOT Matrix, BOLD, Vector all in one
Fonts : all that are available on computer
Minimum Line width : 0.012mm
Marking area : Standard 110mm X 110mm (Customisable upto 400mm x 600mm)
Marking length : Unlimited
Source Life : upto 75,000 Hours
Positioning mode : RED Light Focused
Dot Size : From 0.091 mm to 1.65 mm
Number of lines : Multiline within marking area
Wave length options :10.6μm(Standard), 9.3μm(PET),
10.2μm (Laminated Plastic Card)
Languages supported : English, Hindi, Arabic, Chinese, Spanish Etc
File formats : BMP, JPEG,DXF, PLT
Accessories available : Sensors, Encoder, Vision systems etc
Power Supply : 100 – 240V 50/60Hz 6W
Environment : Temperature – 5 -45 Degree Celsius
Humidity : 10-90% (non condensing)
Interface : Touch Screen HMI, USB, Encoder, Sensor
Size : 120cms x 32cms x 19cms
Weight : 62.5 Kgs ( Including Accessories & X-Y Axis with castors)
Functions
- Field rotation as per requirement
- Print delay inbuilt can be adjusted as required
- Inbuilt Date, Time Bar Code, 2D Code, QR Code, Serial Number
- Production data can be set online
- Metre marking function inbuilt
- Different Wattage Source available for varied applications
As one of the trusted laser coding machine suppliers and laser marking machine dealers, PrintJet Solutions offers advanced fiber laser coding solutions for diverse industries. Businesses looking for a laser coding machine Bangalore can rely on the PJS-LF-9900 Series for high-speed, permanent, and cost-effective coding and marking performance.
